GENERAL DESCRIPTION

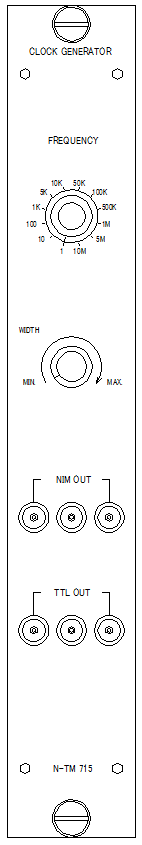

N-TM 715 is CLOCK GENERATOR of 10MHz.Output frequency is able to select 12 mode. (1Hz, 10Hz, 100Hz, 1KHz, 5KHz, 10KHz, 50KHz, 100KHz, 500KHz, 1MHz, 5MHz, 10MHz) by the rotary-switch on front panel. FAST NIM and TTL (50 ohms driver) signal is respectively 3 outputs . Output pulse width is able to adjust from 5ns to 70ns.

SPRECIFICATIONS
＊FREQUENCY ：
1Hz , 10Hz , 100Hz , 1KHz , 5KHz , 10KHz , 50KHz , 100KHz , 500KHz , 1MHz , 5MHz , 10MHz
＊PULSE WIDTH ： Approximately 5ns～70ns
＊OUTPUT ： FAST NIM 3 , TTL 3
＊OUTPUT CONNECTOR ： LEMO-TYPE (00.250）
＊POWER SUPPLY ： +6V , -6V
＊PACKAGING ： NIM Standard single width module
