General Description

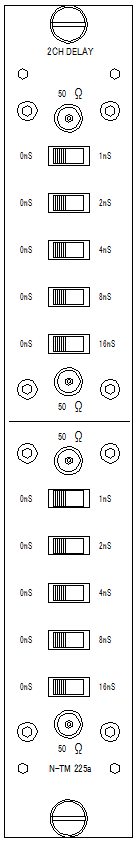

N-TM 225a 2CH VARIABLE DELAY is the delay module that is able to adjust 1ns each from 0ns to 31ns. The selection in delay time adjusts by the combination of the slide switch (1ns,2ns,4ns,8ns,16ns). The delay circuit of N-TM 225a is composed of the coaxial cable of characteristic impedance 50Ω.

SPECIFICATIONS
＊NUMBER OF CHANNEL: 2
＊INPUT
IMPEDANCE: 50Ω
CONNECTOR: LEMO-TYPE (00.250)
＊OUTPUT
IMPEDANCE: 50Ω
CONNECTOR: LEMO-TYPE (00.250)
＊DELAY TIME: 1ns , 2ns , 4ns , 8ns , 16ns
(Transformation possibility with 1ns stepping to 0ns～31ns by the switch)
＊POWER SUPPLY : None
＊PACKAGING: NIM Standard single width module
