GENERAL DESCRIPTION

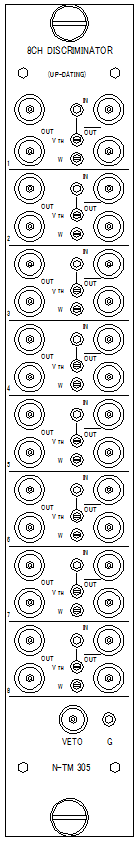

N-TM 305 8CH DISCRIMINATOR (UPDATING) is composed of 8 independent UPDATING DISCRIMINATOR circuits and 1 common “VETO” circuit. The threshold level and the output pulse width can be adjusted independence each channel. The threshold level can be adjusted from -10mV to -1V and the output pulse width can be adjusted from 13ns to 200ns by potentiometers of front panel.

SPECIFICATIONS
＊NUMBER OF CHANNEL : 8
＊INPUT THRESHOLD LEVEL : -10mV～ -1V
IMPEDANCE : 50Ω
REPEATEDLY FREQUENCY : < 50MHz
PULSE WIDTH : > Approximately 4ns
PROTECTION : +0.7V -1.4V
＊VETO INPUT IMPEDANCE : 50Ω
INPUT SIGNAL : FAST NIM
＊BIN GATE INPUT
INPUT : BIN connector pin-36 (ON-OFF with switch）
SIGNAL : TTL （VETO by LOW)
＊OUTPUT
OUTPUT NUMBER : OUT ; 2 , -OUT ; 1 /CH
OUTPUT SIGNAL : FAST NIM
OUTPUT PULSE WIDTH : Approximately 13ns～200ns
Setting with the potentiometer on the front panel
＊IN-OUTPUT CONNECTORS : LEMO-TYPE (00.250)
＊POWER SUPPLY : +6V=50mA , -6V=1.8A
＊PACKAGING : NIM Standard single width module
