GENERAL DESCRIPTION

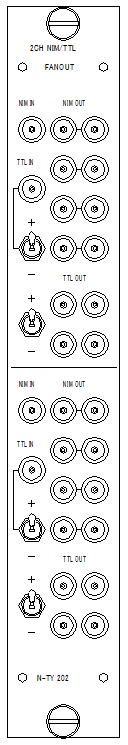

N-TY 202 2CH NIM/TTL Fanout is useful NIM single width module because it has level shift function of FAST NIM to TTL and TTL to FAST NIM.It has FAST NIM and TTL input 1 each for each channel,both input is able to use.And it has 8-FAST NIM output and 4-TTL output(50Ω driver).TTL output is able to select polarity with the switch on front panel.

SPECIFICATIONS
＊NUMBER OF CHANNEL ：2
＊NUMBER OF FAST NIM INPUT ：1
＊NUMBER OF TTL INPUT ：1
＊IN/OUTPUT CONNECTOR ：LEMO(00.250)
＊POLARITY CHANGE-OVER ：TOGGLE SWITCH ON FRONT PANEL（TTL IN/OUTPUT ONLY）
＊INPUT IMPEDANCE ：50Ω (FAST NIM),1ＫΩ（TTL）
＊MIN.INPUT PULSE WIDTH ：FAST NIM INPUT；5ns,TTL INPUT；10ns
＊FAST NIM OUTPUT ：8(2-OUTPUT×4)
＊TTL OUTPUT ：4
＊POWER SUPPLY ：+6V=300mA,-6V=700mA
＊PACKAGING ：STANDARD NIM SINGLE WIDTH MODULE
