GENERAL DESCRIPTION

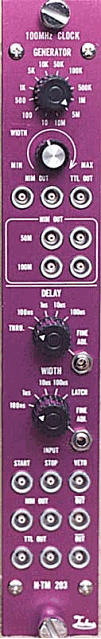

N-TM 203 100MHz CLOCK GENERATOR is a single width NIM module housing 100MHz Pulse generator and Gate & Delay generator.The pulse generator has 4 fixed frequency FAST NIM signal output (100MHz,50MHz).

Other frequency ,with pulse width adjust, is selected by the rotary switch on front panel

10Hz,100Hz,500Hz,1KHz,5KHz,10KHz,50KHz,100 KHz,500KHz,1MHz,5MHz,10MHz.

The output is FAST NIM signals and TTL signal(50ohms driver).Gate & Delay generator have a time selectable delay generator and a width selectable gate generator. The delay range,fine adjustable,is selected by switch on front panel(THRU,100ns,1μs,10μs,100μs).In the same way,the Gate pulse width,fine adjustable,is selected switch (LATCH,100ns,1μs,10μs,100μs).The LATCH function is controlled by START/STOP FAST NIM signals. The output is FAST-NIM signals,inverted FAST-NIM signal,TTL signals and inverted TTL signal(50Ω drive).

SPECIFICATIONS
＊FAST NIM/TTL (50Ω DRIVER) OUTPUT PART
FREQUENCY :
10Hz , 100Hz , 500Hz , 1KHz , 5KHz , 10KHz , 50KHz , 100KHz ,
500KHz , 1MHz , 5MHz , 10MHz
PULSE WIDTH : about 5ns～100ns
OUTPUT : FAST NIM 2 , TTL 1
OUTPUT CONNECTOR : LEMO-TYPE (00.250）
＊FAST NIM FIXATION OUTPUT PART
FREQUENCY : 100MHz , 50MHz
OUTPUT NUMBER : 100MHz : 2 , 50MHz : 2
＊GATE GENERATOR PART
START INPUT : FAST NIM
VETO INPUT : FAST NIM
STOP INPUT : FAST NIM
OUTPUT DELAY TIME :
THRU , 100ns , 1μs , 10μs , 100μs (adjustment possibility)
OUTPUT PULSE WIDTH :
LATCH , 100ns , 1μs , 10μs , 100μs (adjustment possibility)
OUTPUT SIGNAL : FAST NIM/TTL (50Ω driver)
OUTPUT NUMBER : FAST NIM (OUT ; 2 , -OUT ; 1) TTL (OUT ; 2 , -OUT ; 1)
OUTPUT CONNECTOR : LEMO-TYPE (00.250）
POWER SUPPLY : +6V=0.3A , -6V=0.8A , +24V=5mA ,-24V=20mA
PACKAGING : NIM Standard single width module
