General Description

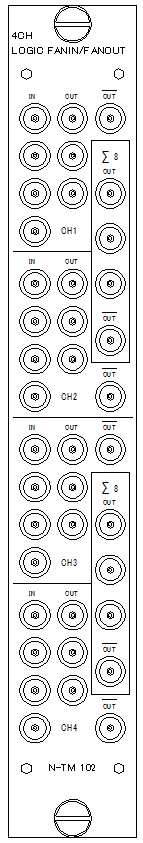

N-TM 102 4CH LOGIC FANIN/FANOUT is the module that has the 4-FOLD Fanin/4-FOLD Fanout circuits of 4 channels and 8-FOLD Fanin/4-FOLD Fanout circuits of 2 channels.Each channel has 4 input.The output has 3″OUT” and 1″-OUT” of the logic sum. Also this module has the OR of 2″OUT” and 1″-OUT” to each 8 input of 1-2 channels and also 3-4 channels.

SPECIFICATIONS
＊NUMBER OF CHANNEL : 4 (8-FOLD Fanin ; 2）
＊INPUT
NUMBER : 4
IMPEDANCE : 50Ω
SIGNAL : FAST NIM
PULSE WIDTH : > 4ns
REPEATEDLY FREQUENCY : > 125MHz (At the time of 4ns)
＊OUTPUT
NUMBER : 4 (Normal ; 3 , Complementary ; 1)
OUTPUT SIGNAL : FAST NIM
PROPAGATION DELAY TIME : 4-FOLD Fanin ; 8ns , 8-FOLD Fanin ; 8ns
＊IN-OUTPUT CONNECTOR : LEMO-TYPE (00.250)
＊POWER SUPPLY : -6V=1.05A
＊PACKAGING : NIM Standard single width module
