GENERAL DESCRIPTION

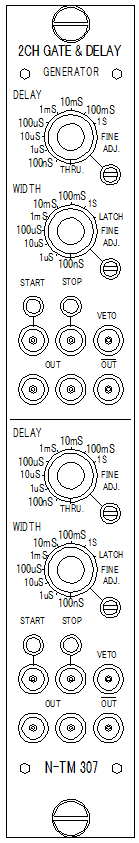

N-TM 307 2CH GATE & DELAY GENERATOR TYPE 2 has 2 independent Delay-Gate circuits. The delay & gate generator starts when the “START”(FAST NIM) is input .And then the signal is output through “OUT” and inverting “OUT”. The delay & gate circuits have 2 switches of range selection and potentiometer for adjustment. The delay time and gate width are able to adjust. It is useful to collect data with the function that the gate width will be reset when “STOP”(FAST NIM) is input. N-TM 307 has latch function by setting “WIDTH” switch on “LATCH”. (LATCH MODE:OUTPUT from input of “START” signal to input “STOP” signal,)“VETO” inhibits “START” signal. Output has 2 OUT , 1 inverting OUT and DELAY OUT. The output can be select of FAST NIM or TTL signal by the switching of jumper pin on the pc board. (FAST NIM at the time of shipment.)

SPECIFICATIONS
＊NUMBER OF CHANNEL : 2
＊INPUT
START : 1 (FAST NIM)
STOP : 1 (FAST NIM)
VETO : 1 (FAST NIM)
＊OUTPUT
NUMBER OF OUTPUT : 2 (OUT) , 1 (-OUT)
OUTPUT SIGNAL : FAST NIM or TTL (Selection of jump on pc-board)
DELAY TIME : THRU , 100ns , 1μs , 10μs , 100μs , 1ms , 10ms , 100ms , 1s
OUTPUT PULSE WIDTH : 100ns , 1μs , 10μs , 100μs , 1ms , 10ms , 100ms , 1s , LATCH
＊OTHER
START-OUTPUT : Propagation delay 22ns
START-STOP PUSH BUTTON: Manual action
BIN GATE DRIVER : It is in each channel (Selection by the channel selection jacket)
＊POWER SUPPLY : -6V=1.1A , +6V=280mA , -24V=30mA
＊PACKAGING: NIM Standard single width module
