- N-OR 426
- 8CH 100MHz Visual Scaler
・Overview
General Description

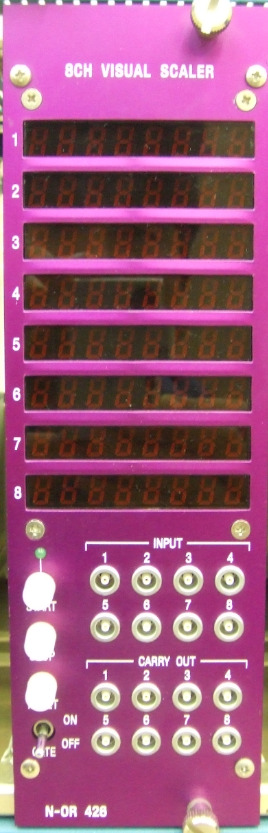

N-OR 426 8CH 100MHz VISUAL SCALER is the standard NIM double width module of 8 channels with 8 digits.The mode(local or remote) selects by the toggle switch of rear panel. Local mode:The counter is controlled by the start-stop input(on rear panel) of FAST NIM or start-stop switch(on front panel).The reset is a common reset. LED displays all the channels simultaneously.The overflow flag is lighted as soon as CARRY OUT is output.Inhibit is common all the channels.
SPECIFICATIONS
*NUMBER OF CHANNEL : 8
*INPUT
IMPEDANCE : 50Ω
INPUT SIGNAL : FAST NIM
PULSE WIDTH : > 5ns
REPEATEDLY FREQUENCY : < 100MHz
*GATE : FAST NIM
IMPEDANCE : 50Ω
LOGIC : Discontinuation at the time of OFF
*CARRY OUT
SIGNAL : FAST NIM
OUTPUT CONDITION : When it overflows
from 99,999,999 to 00,000,000
*DISPLAY
DATA DISPLAY : It depends on 7-segment LED of 8 column
CARRY OUT : Red LED is lighted until
(it is reset illumination)
START : Illumination during measuring
*FRONT PANEL OPERATION PART (all the channels common)
START : Operation by the push switch
STOP : Operation by the push switch
RESET : Operation by the push switch
GATE:ON/OFF operation by the toggle switch
*REAR PANEL OPERATION PART
START IN : FAST NIM
STOP IN : FAST NIM
RESET IN:FAST NIM
GATE IN:FAST NIM
IMPEDANCE : 50Ω
PULSE WIDTH : 5ns
*POWER SUPPLY : -6V=600mA , +6V=700mA
*PACKAGING : NIM Standard 2 width module
